Dimensions & Weight
Dimensions: ~1,850 × 780 × 1,080 mm (72.8 × 30.7 × 42.5 in)
Wheelbase: ~1,255 mm (49.4 in)
Seat Height: ~830 mm (32.6 in)
Ground Clearance: ~270 mm (10.6 in)
Dry/Curb Weight: ~45 kg / 57 kg (99 / 126 lb)
Max Load: ~100 kg (220 lb)
Power & Performance
Motor & Controller: PMSM mid‑drive with FOC sine‑wave ("X") controller
Peak Power: 8 kW
Wheel Torque: ~266 N·m (196 ft‑lb)
Top Speed: 75 km/h (~46.6 mph)
Climb Rate: >45°
Accel: 0–30 km/h ≈1.3 s; 0–50 km/h ≈2.7 s
Battery & Range
Battery: 60 V / 40 Ah (≈2,400 Wh) removable 21700 lithium pack
Range: ~75 km (≈46 mi) @ 40 km/h
Charge Time (20–80%): ~2 h
Suspension & Chassis
Frame: Forged 6061 aluminum alloy Front Fork: Inverted hydraulic coil, 200 mm travel (7.8 in)
Rear Suspension: Intersect TR multi‑link, 85 mm shock / 210 mm wheel travel
Brakes, Wheels & Drivetrain
Brakes: Dual 4‑piston hydraulic discs, 203 mm, with regen in Sport mode Wheels/Tires: 19″ front / 18″ rear off‑road tires (CST 70/100‑19 & 3.00‑18)
Transmission: Primary belt + 420 chain, 1:7.6 ratio
Electronics & Features
Ride Modes: Eco & Sport with adjustable two-stage throttle curves
Display: LCD dashboard with speed, battery, trip info, USB charging
Extras: Regenerative braking, LED lighting (headlight/rear), horn, side‑stand kill switch
Colors & Highlights

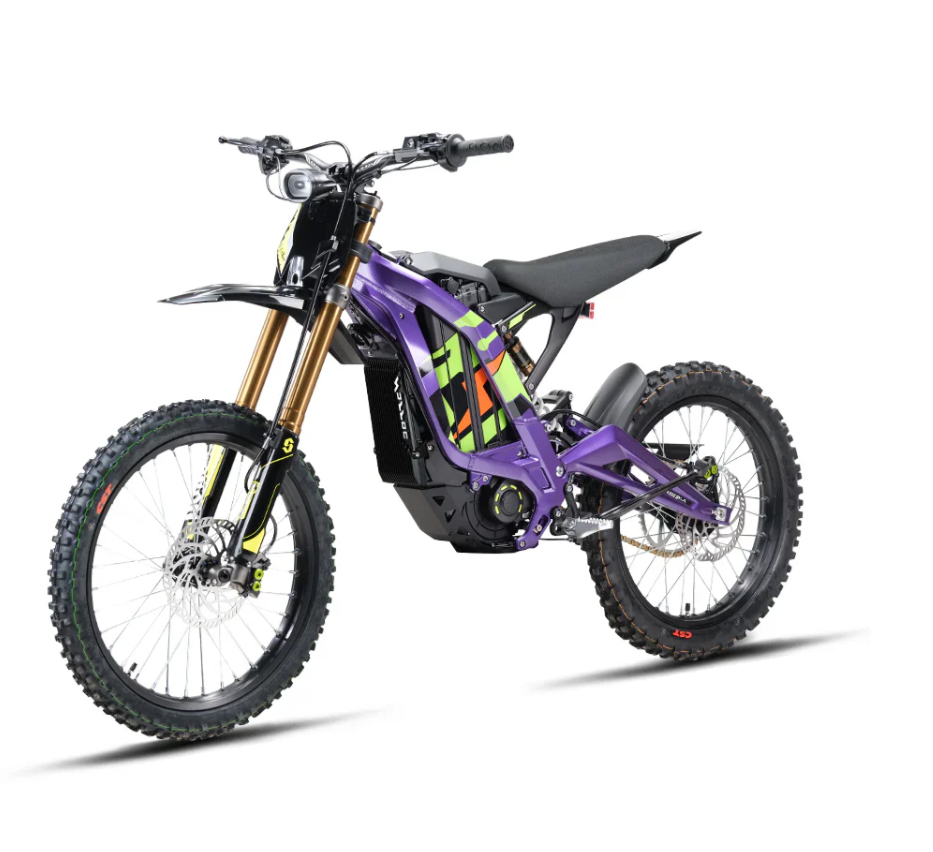

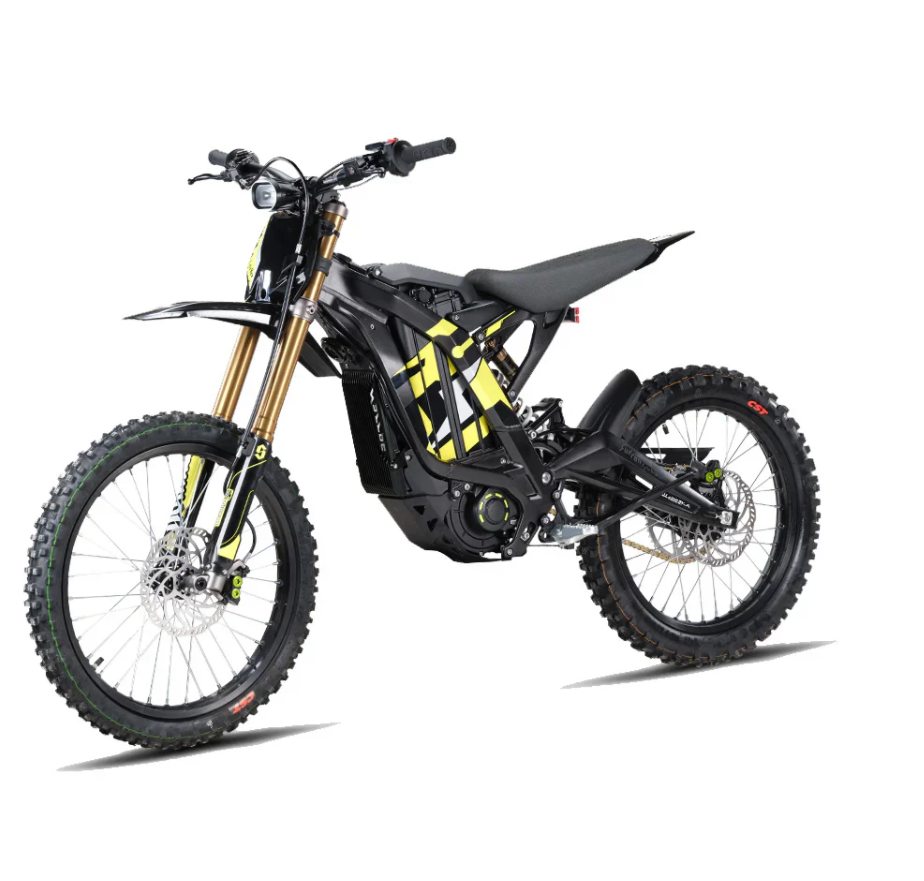

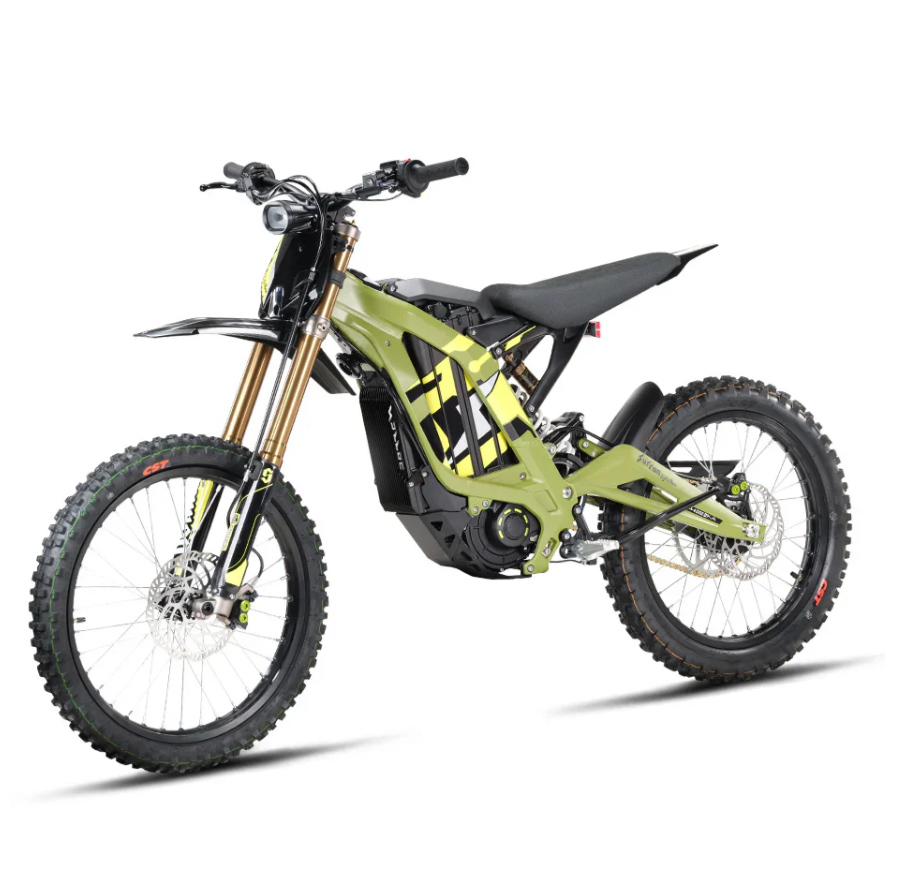

Color Options: Carbon Black, Sage Green, Lapis Blue, Phantom Purple
Standout Features: Lightweight yet strong alloy frame, fast 2‑hour charge, high-performance suspension and brakes, compact agility
